Apache and Tomcat

Tomcat application server is good at serving dynamic content. Though it can serve static content too, it’s generally left to the Web servers to do the job as its lightweight and specialised. Hence most Java-based web application would generally involve Apache to serve static content while dynamic content is left to Tomcat. Integration between Apache and Tomcat can be done using the JK Connector. The JK Connector uses the Apache JServ Protocol (AJP) to communicate between Apache and Tomcat.

The AJP Connector

The AJP protocol is used for communication between Tomcat and Apache, the extension modules used on Apache are mod_jk or mod_proxy. Both are native code extension modules written in C/C++, on the Tomcat side the software module is the AJP Connector written in Java.

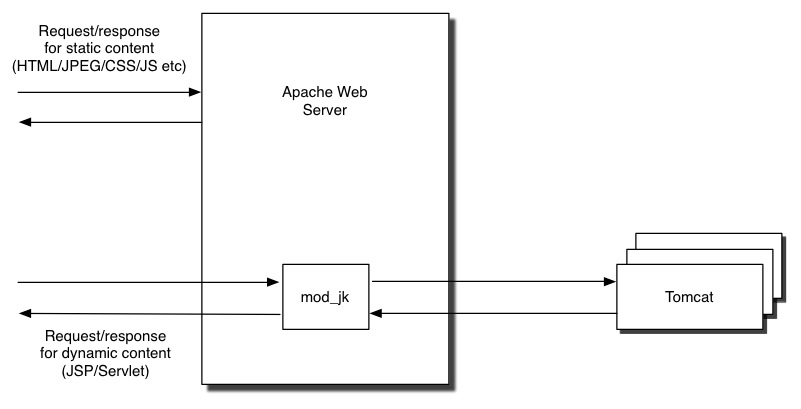

The below diagram shows how the native code Apache module (mod_jk or mod_proxy) works with Tomcat. Apache will receive the incoming request for a JSP or servlet and Apache using the extension modules will pass this request via the AJP protocol to Tomcat. The response is sent back to the Apache via the AJP protocol and back to the client.

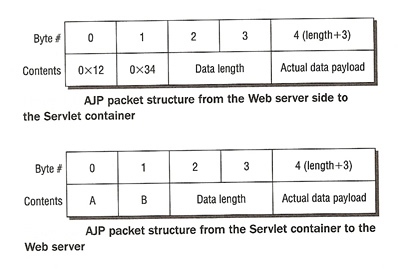

The Apache JServ Protocol (AJP) uses a binary format for transmitting data between the Web server and Tomcat, a network socket is used for all communication. The AJP packet consists of a packet header and a payload below is the structure of the packet

As we can see, the binary packet starts with the sequence 0x1234, this is followed by the packet size (2 bytes) and then the actual payload. On the return path, the packets are prefixed by AB (the ASCII codes for A and B), the size of the packet and then the payload.

The major feature of this protocol is

Good performance on fast networks
Support for SSL, encryption and client certificate
Support for clustering by forwarding requests to multiple Tomcat servers

One of the ways the AJP protocol reduces latency is by making the Web servers reuse already open TCP-level connections with Tomcat. This saves the overhead of opening a new socket connection for each request, it’s a bit like a connection pool.

Sample configuration for an AJP Connector is as below

    <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />

Tomcat Workers for Apache

A worker represents a running instance of Tomcat, a worker serves the requests for all dynamic web components. However, you can run multiple instances of Tomcat in a cluster to implement load balancing or site partitioning. Each worker is identified by a unique hostname or a unique IP address and port number. You may what to implement multiple workers for the following reasons

Web application contexts to be served by different Tomcat workers
Different virtual hosts to be served by different Tomcat workers
Service more requests than the capacity of a single physical server

To let Apache know where the Tomcat servers and offload work to Tomact a file called workers.properties is created detailing this information. Below are the important attributes to connect Apache to Tomcat.

Worker List

Attribute	Description
work.list	Describe the workers that are available to Apache via a list

Worker Types

Attribute	Description
ajp13	This type of worker represents a running Tomcat instance
lb	Used for load balancing
status	Display useful information about how the load among the various Tomcat workers is distributed
jni	Used in the process, this worker handles the forwarding of requests to in-process Tomcat workers using JNDI
ajp12	Worker that support the AJP 1.2 protocol

Other Worker Properties

Attribute	Description
worker.test1.type	Describes the type of worker (see above for types)
worker.test1.host	The host where the worker Tomcat instance resides
worker.test1.port	The port the AJP 1.3 Connector Tomcat instance is listening on (default 8009)
worker.test1.connection_pool_size	The number of connections used for this worker to be kept in a connection pool
worker.test1.connection_pool_minsize	The minimum number of connections kept in a connection pool
worker.test1.connection_pool_timeout	The number of seconds that connections to this worker should be left in the connection before expiry
worker.test1.mount	The contexts paths that are serviced by the worker, you can also use the JkMount directive in the http.conf file
worker.test1.retries	Controls the number of times mod_jk will retry when a worker returns an error
worker.test1.socket_timeout	Controls how long a worker will wait for a response on a socket before indicating an error
worker.test1.socket_keepalive	Indicates if the connection to the worker should be subject to keep alive
worker.test1.lbfactor	An integer indicating the local-balance factor used by the load balancer to distribute work between multiple instances of Tomcat.

Worker Loading Balancing Properties

Attribute	Description
worker.bal1.balance_workers	A list of workers to load balance between
worker.bal1.lock	The type of locking used O (Optimistic) or P (Pessimistic)
worker.bal1.method	can be set to R (Requests), T (Traffic), B (Busy-ness) R = The worker to use is based on the number of requests forwarded T = The worker to use is based on the traffic that had been sent to the workers B = The worker to use is based on the load dividing the number of concurrent requests by the load factor
worker.bal1.secret	Sets a default secret password for all workers
worker.bal1.sticky_session	Tells the mod_jk to respect the sessionID in the request and ensures that the same session is always serviced by the same worker instance.
worker.bal1.sticky_session_force	This is used for failover

Example Configurations

Simple example

    worker.list = worker1
    worker.worker1.type = ajp13
    worker.worker1.host = 192.168.0.1
    worker.worker1.port = 9009
    worker.worker1.connection_pool_size = 5
    worker.worker1.connection_pool_timeout = 300

Load Balancing example

    worker.list = loadbal1,stat1

    worker.tomcatA.type = ajp13
    worker.tomcatA.host = 192.168.0.1
    worker.tomcatA.port = 8009
    worker.tomcatA.lbfactor = 10

    worker.tomcatB.type = ajp13
    worker.tomcatB.host = 192.168.0.2
    worker.tomcatB.port = 8009
    worker.tomcatB.lbfactor = 10

    worker.tomcatC.type = ajp13
    worker.tomcatC.host = 192.168.0.3
    worker.tomcatC.port = 8009
    worker.tomcatC.lbfactor = 10

    worker.loadbal1.type = lb
    worker.loadbal1.sticky_session = 1
    worker.loadbal1.balance_workers = tomcatA,tomcatB,tomcatC

    worker.stat1.type= status

Note: if one of your servers is a slow serving then lower the lbfactor of that server

Apache HTTPD configuration

There are a number of Apache directives that you can configure in the httpd.conf file

Apache mod_jk Directives

Directive	Description
JkWorkerFile	tells mod_jk where to find the workers property file
JkLogFile	tells mod_jk where to write its logs
JkLogLevel	sets the level of logging (info, error or debug)
JkRequestLogFormat	specifies the log format, below are the options that you can use %b or %B - bytes transmitted (not counting HTTP headers) %H - request protocol %m - request method %p - port of the server for the request %r - first line of the request %T - request duration %U - URL of the request with query string removed %v or %V - server name %w - name of the tomcat worker %R - the route name of the session
JkMount	control the URL matching and forwarding to the Tomcat workers

Example directive configuration

    JkWorkerFile            conf/worker.properties
    JkLogFile               logs/mod_jk.log
    JkShmFile               logs/mod_jk.shm
    JkLogLevel              debug
    JkRequestLogFormat      "%w  %U  %T"
    JkMount                 /examples/jsp/* loadbal1
